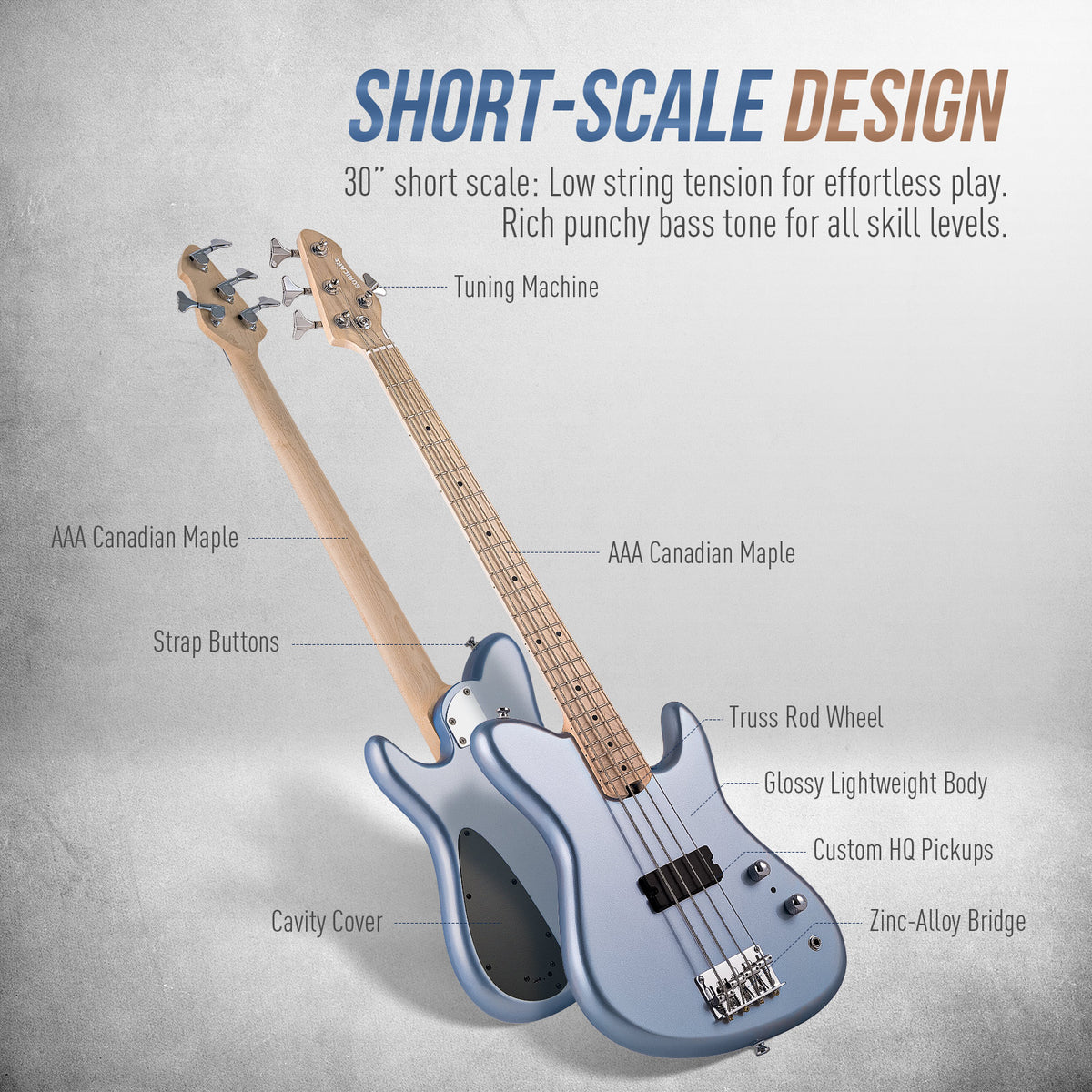

●Lightweight Compact Short-Scale Bass：30-inch 762mm scale, only ~3.5kg weight with original SC body; easy to carry for teens, beginners and stage players, delivers clear thick low-end tone.

●All-In-One Built-in Smart Modeling System：Top digital processing with 75 effects, 100 amp/pedal sims, supports custom IR & NAM; max 9h battery, illuminated knobs, switch to normal bass when smart system off.

●Multi-Interface for All Practice & Recording Scenes：3.5mm headphone jack for silent play, 6.35mm amp output, Bluetooth APP control, USB-C audio OTG/loopback for direct phone/PC recording & firmware update.

●Free Mobile APP with Practical Built-in Tools：Compatible iOS & Android APP, built-in tuner and 100 drum rhythm patterns with metronome; edit tone presets, wirelessly update bass firmware anytime.

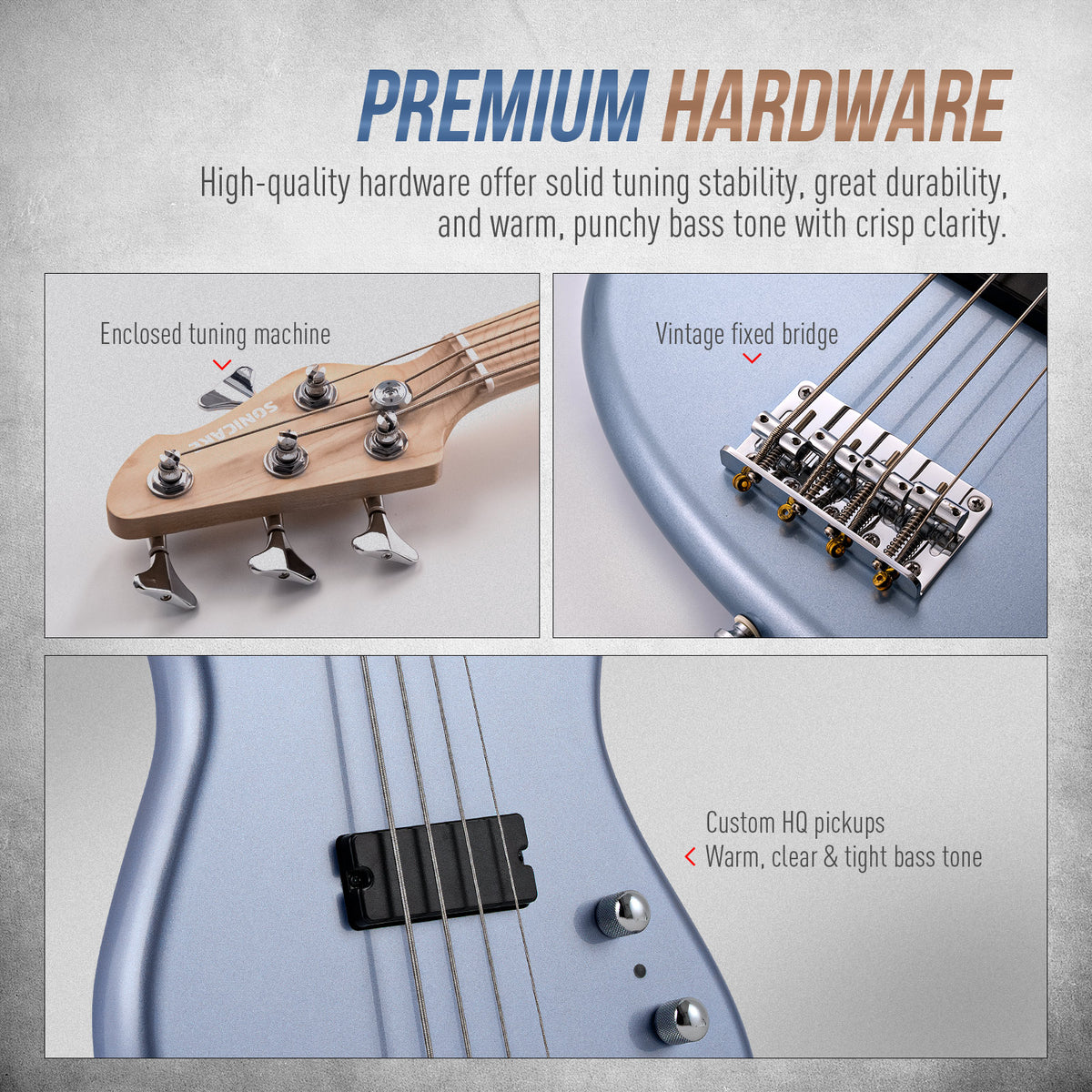

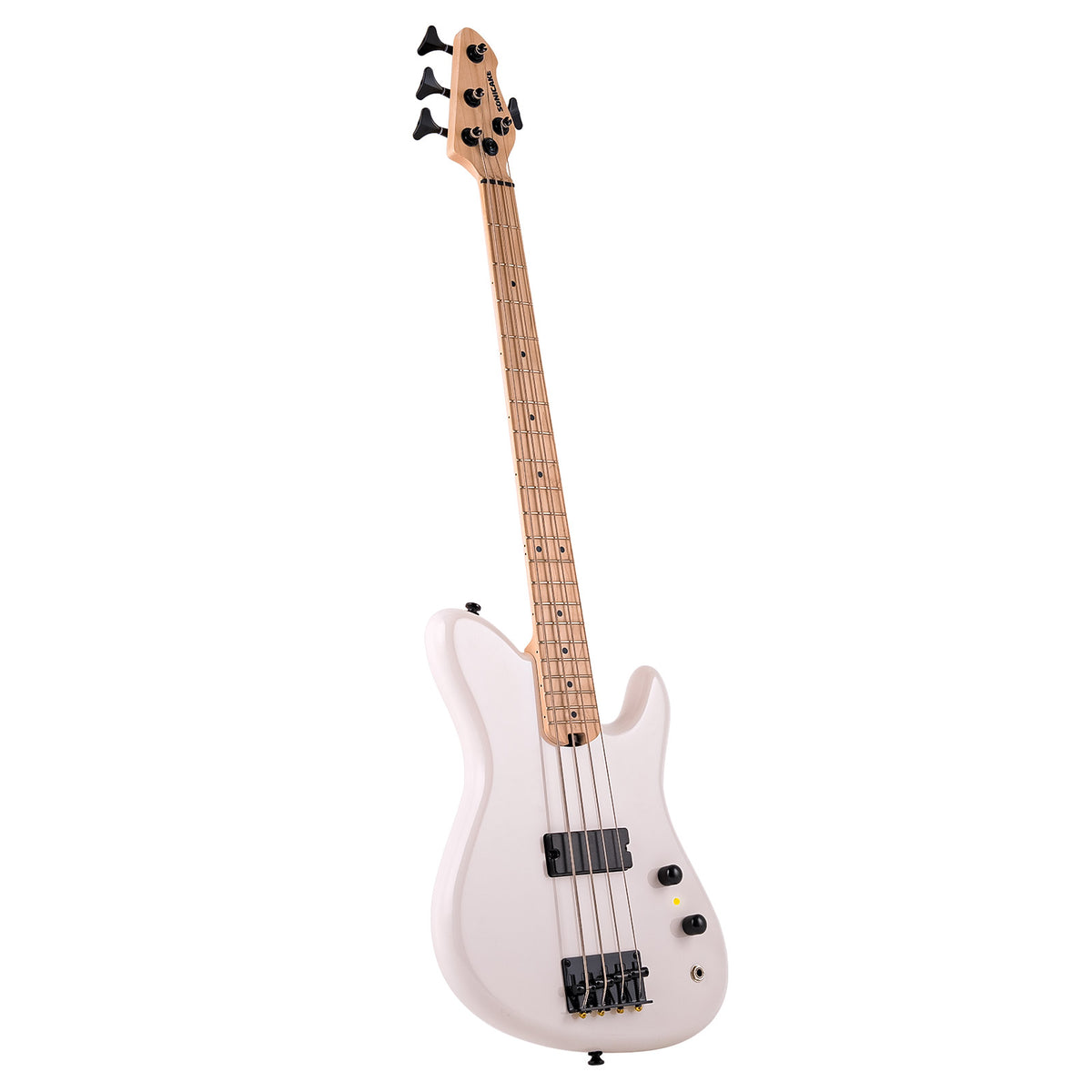

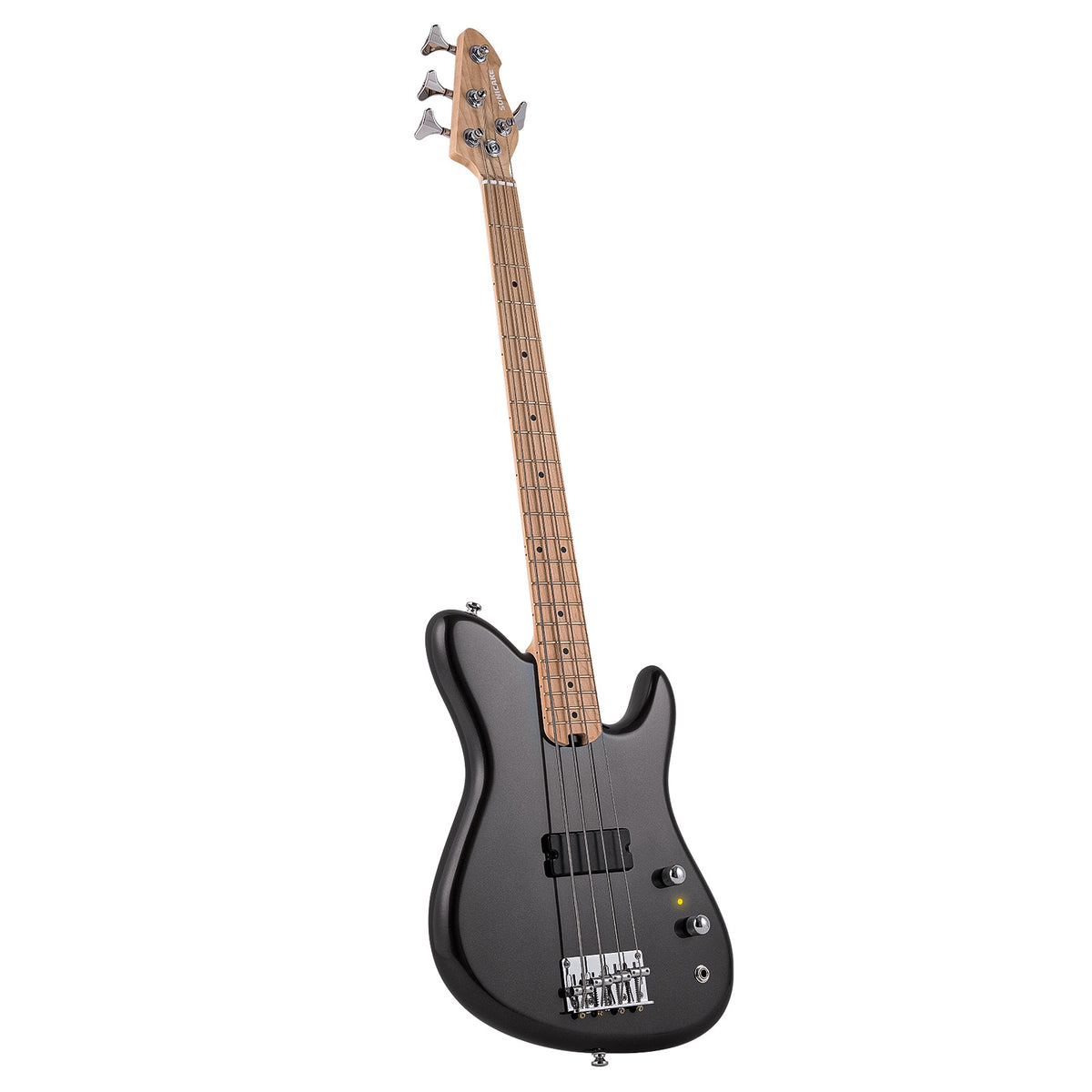

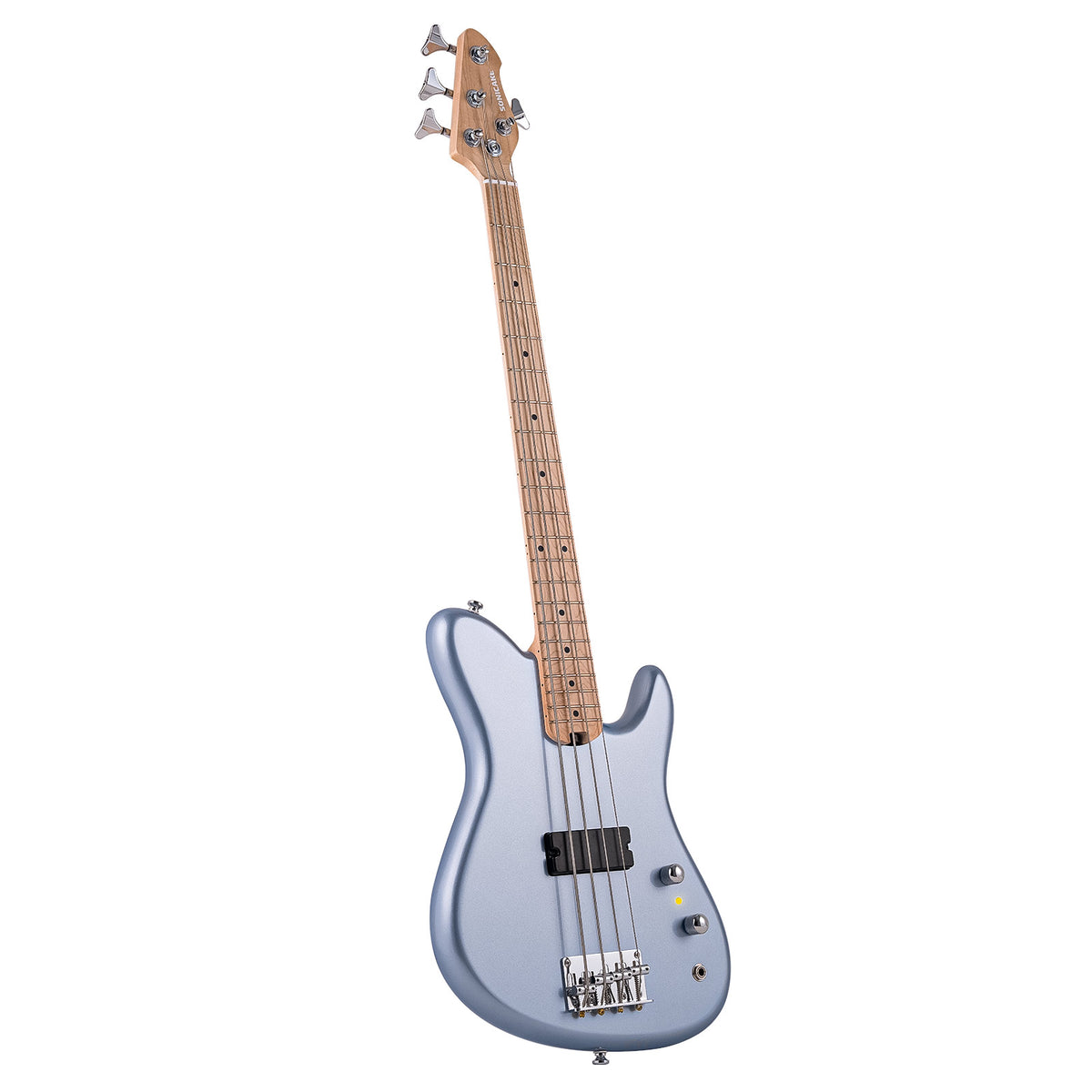

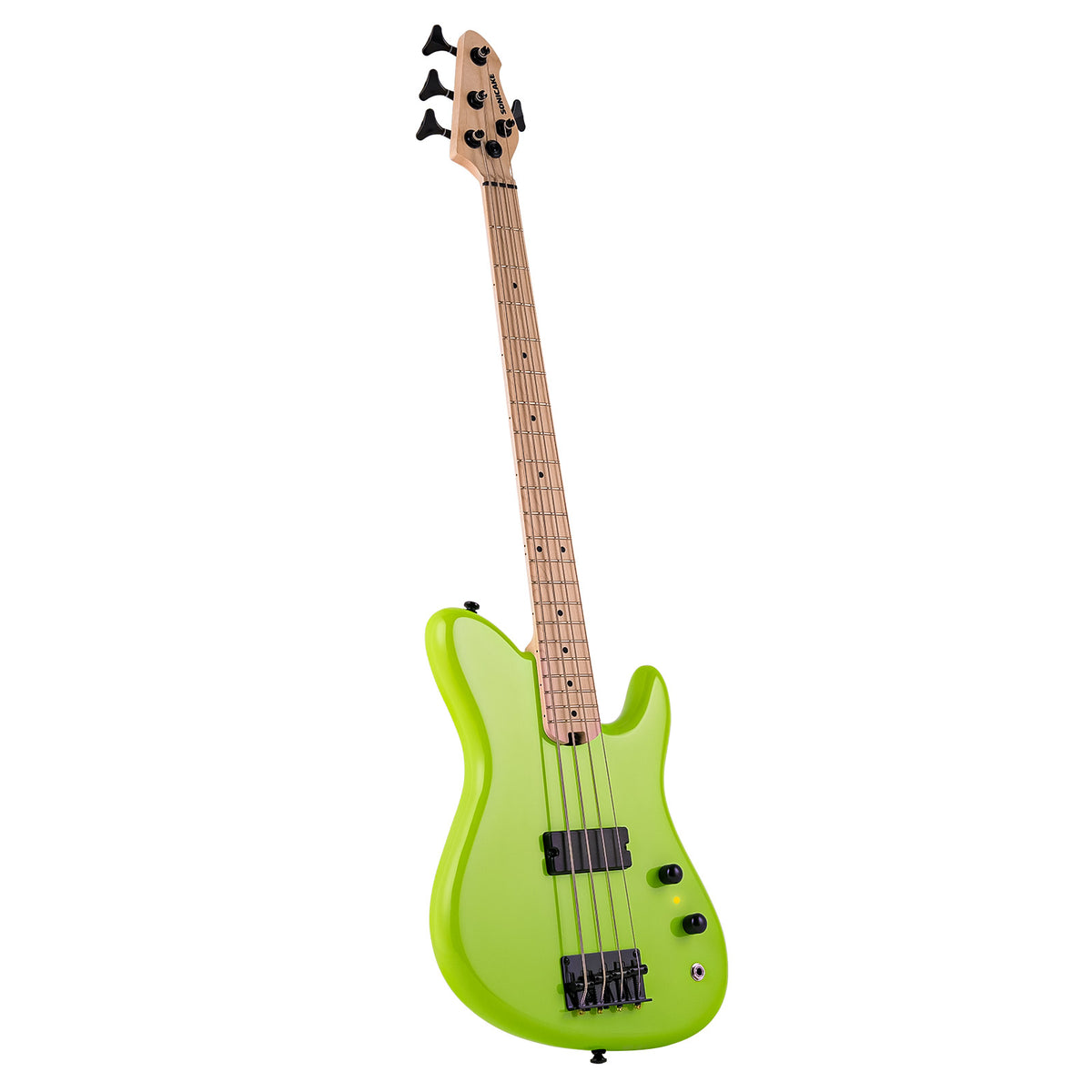

●Solid Premium Bass Construction & 4 Stylish Finishes：3-piece poplar body, maple C-neck & fingerboard, 21 nickel frets, custom humbucker pickup & stable fixed bridge; available in Midnight Black, Moonstone White, Cryo Blue, Racing Green.

Specifications:

Body: 3-piece Poplar
 Neck: Maple

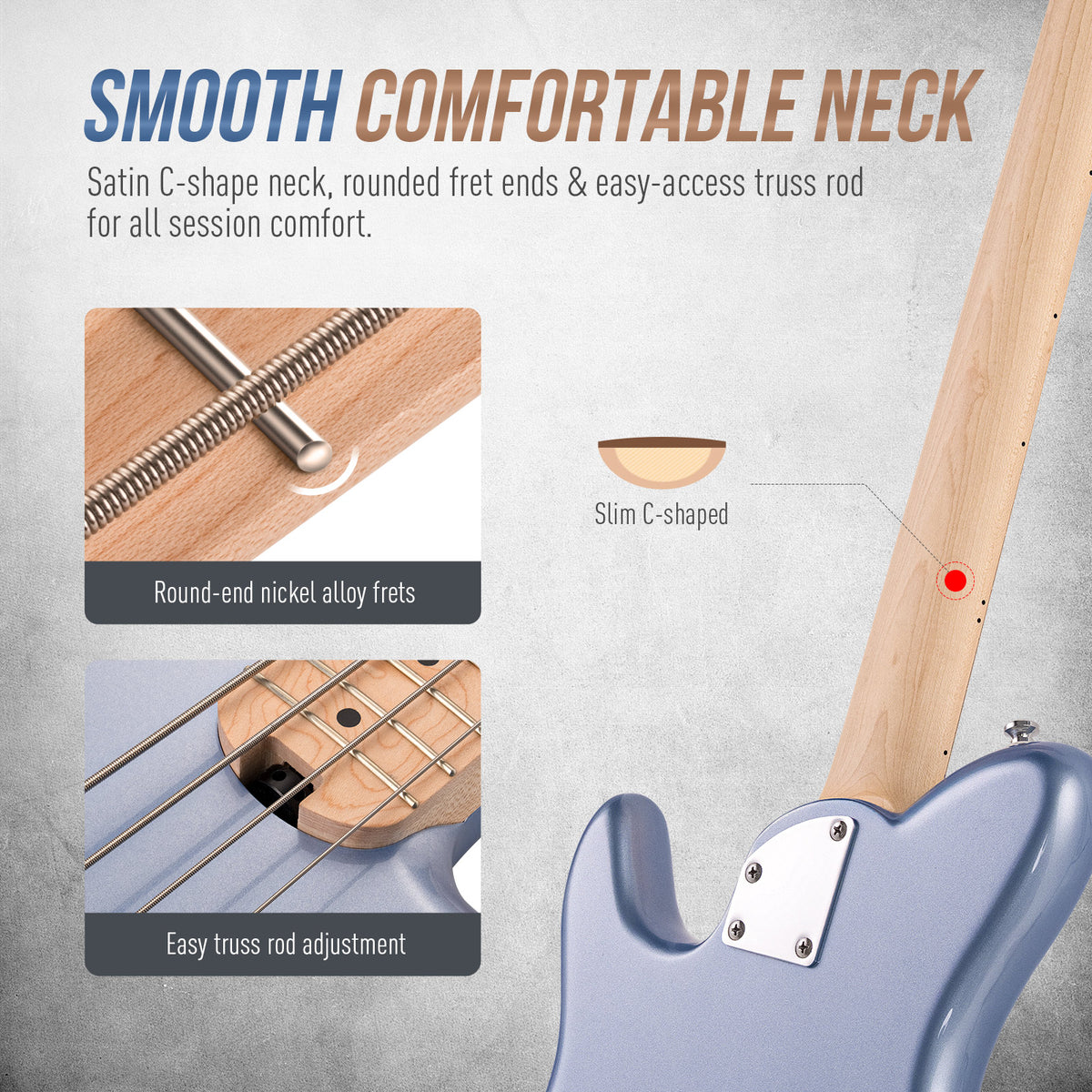

 Neck Shape: C-shape
 Joint: Bolt-on
 Scale Length: 762mm (30 inches)
 Fingerboard: Maple
 Fingerboard Radius: R300mm (12 inches)
 Frets: Nickel Alloy Frets
 Number of Frets: 21 frets
 Truss Rod:
- Two-way
- adjusted via a wheel at the heel
 Pickup Configuration
- Custom HQ Pickups
- Humbucker (H) configuration
 Pickup Impedance: 10.3kΩ
 Bridge: Fixed bridge

Smart System
 Frequency Response: 20Hz-20kHz
 Digital audio processing
- 24-bit
- 44.1kHz
 Modules: 9
 Effects: 75
 Presets: 15
 IR performance
- 24-bit
- 512 samplings
- supports 5 user IRs
 Drum: 100 styles incl. metronome

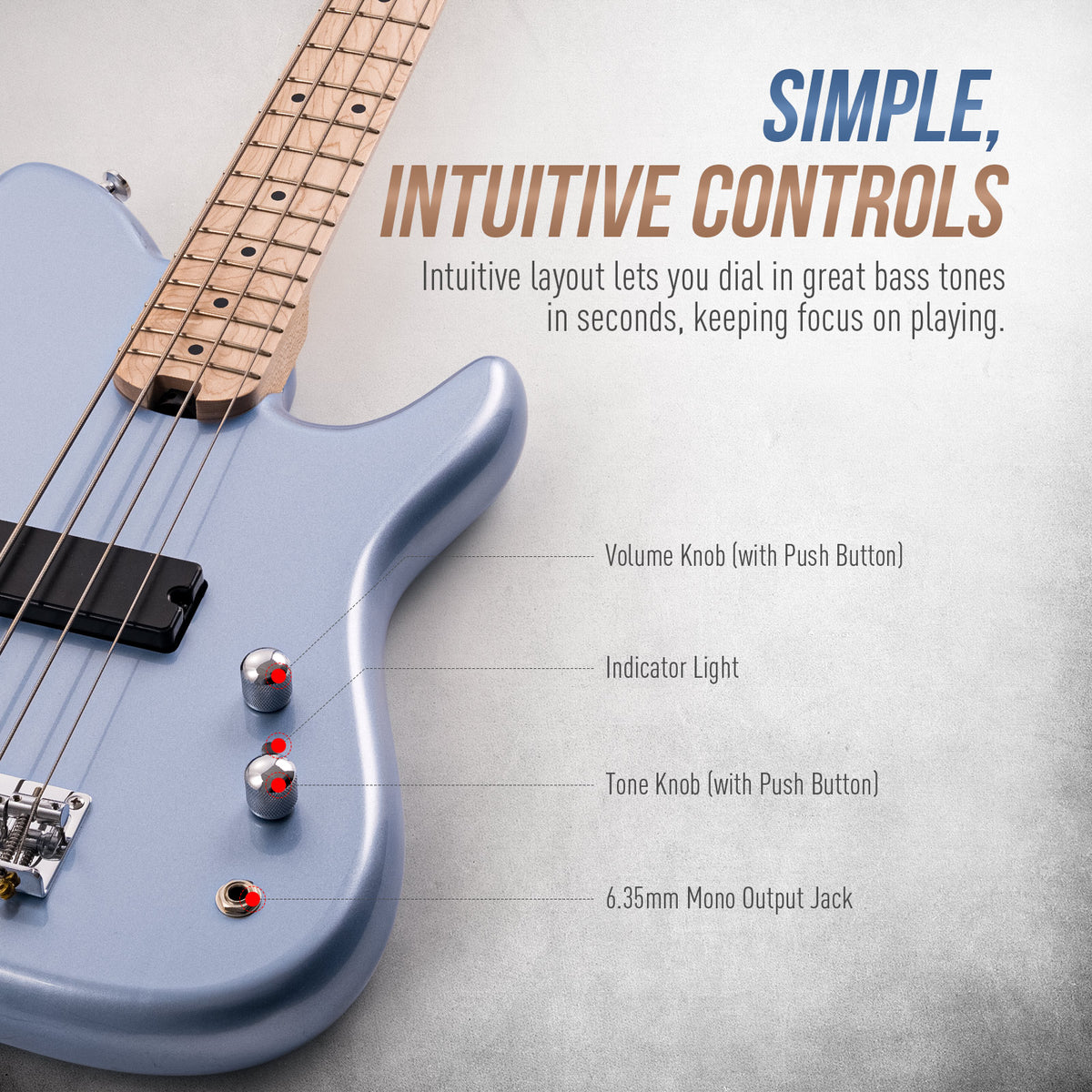

 Outputs
- One 1/4" (6.35mm) mono output jack,
- one 1/8" (3.5mm) stereo phones jack
Specifications 17
 USB: USB 2.0 Type-C with USB Audio 2.0
 USB Audio
- 2-in
- 2-out interface
 Power: 5V USB
 Battery life: Max. 9 hours

USB ASIO Driver
Sonicake_UsbAudio_v6.0.0_setup

Firmware
PilotWhale_Firmware_V1.0.4

PilotWhale_Firmware_Release_Note

Latest Software for Mac & Windows
Sonicake Manager V1.6.0 for Mac
Sonicake Manager V1.6.0 for Windows

Software for iOS
SONICLINK V1.8.2 (Apple Store - Search "Sonicake" / "Soniclink")

Software for Android
SONICLINK V1.8.2 (Or Google Play - Search "Sonicake" / "Soniclink")

User Manual
Pilot Whale User Manual
